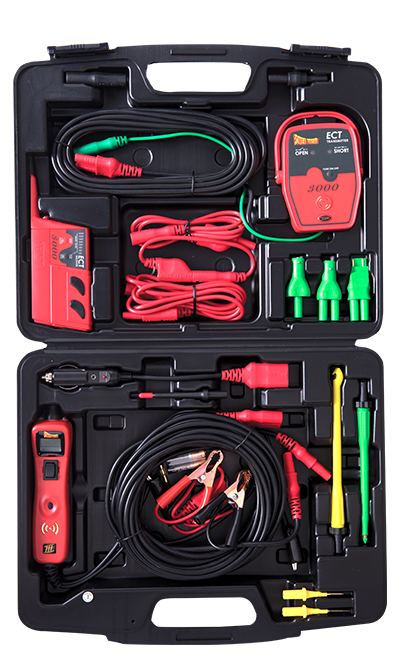

The Power Probe 3 Master Combo Kit combines the Power Probe 3, PPECT3000 and various accessories to provide the ultimate combination of diagnostic and circuit testing capabilities. The Power Probe 3 provides simplified testing of Motors, Lights, Relays, Sensors, as well as supplying Power and Ground for functional component testing on or off the vehicle. The PPECT3000 will help you trace short and open circuits quickly and accurately.
Features:
PP3
- DC Voltmeter Indicators provide active feedback
- LED Lights
- Bad Ground –Indicator
- Short Circuit Indicator
- Relay and Component Tester
- Audible Monitoring of Electrical Signals
ECT3000
- Locate short circuits without removing plastic panels, molding, and carpet. Find short to ground circuits, switches, or breaks in wires. Test and find intermittent conditions. Sensitivity adjustment from 1-8 in (3-20 cm). Trace short to ground wires with visual navigation & sound indicators. Works on Cars, Boats, RV’s, Light Duty, Heavy Duty Trucks, and Trailers.
Specifications
PP3
- DC 0 – 70V + 1 digit
- P-P 0 – 70V
Frequency response of tone pass through
- 10Hz to greater than 10 Khz
PP display
- 15Hz Square Wave
- 35Hz Sine Wave
Power Probe Mode – Continuity to ground
- First level – display is enabled less than 20K
- Second level – green LED is enabled less than 2K
– & + Peak Detector Response
- Single event capture less than 200μs pulse width
- Repetitive events less than 1μs pulse width
Peak to Peak Mode
- 0 – 70V + 1 digit
- 4Hz to over 500kHz Square Wave input
- 4Hz to over 250kHz Sine Wave input
Threshold for PPAC/Audible passthrough
Circuit Breaker
8 amp thermal response – Manual reset
ECT3000
TRANSMITTER
Min Operating Voltage
6 VDC
Max Operating Voltage
48 VDC
Working Current
<200mA
Working Frequency
4KHz
Max Operating Temp
50°C
Max Storage Temp
70°C
Max Operating Relative humidity
80% (Non-condensation)
Max Storage Relative humidity
80% (Non-condensation)
Altitude
<2000m
RECEIVER
Power Supply
2 X 1.5V AAA
Working Current
When not signal be detected <15mA
Power Consumption When Power Off
<10uA
Max Operating Temp
50°C
Max Storage Temp
70°C
Max Operating Relative humidity
80% (Non-condensation)
Max Storage Relative humidity
80% (Non-condensation)
Altitude
<2000m
